    Brand Name : 3onedata
    Model Number : IES205G
    Certification : CE, FCC, RoHS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 sets per month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

    5-port Industrial Ethernet Switch , Gigabit Ethernet Switch With Low Power Consumption

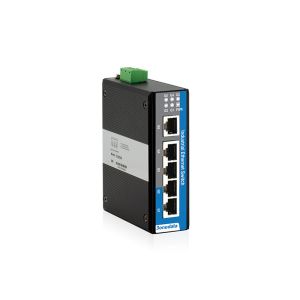

    5-port full gigabit unmanaged DIN-rail mounting industrial Ethernet switch

    Introduction

    IES205G is 5-port full Gigabit layer 2 unmanaged industrial Ethernet switches. The product provides full Gigabit copper port. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes.


    Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.


    Specification

    Standard

    &

    Protocol

    IEEE 802.3 for 10Base-T

    IEEE 802.3u for 100Base-TX

    IEEE 802.3ab for 1000Base-T

    Interface

    10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning

    LED Indicator

    Port Indicator, Power Supply Indicator

    Switch

    Property

    Transmission mode: store and forward

    MAC address: 1K

    Packet buffer size: 1Mbit

    Backplane bandwidth: 12G

    Switch time delay: <10μs

    Power

    Requirement

    Input voltage: 12~48VDC, 3-pin 7.62mm pitch terminal blocks

    nonpolarity, reverse polarity protection


    Power

    Consumption


    No-load: 0.86W@24VDC

    Full-load: 4.63W@24VDC

    Environmental

    Limit

    Operating temperature range: -40~75℃

    Storage temperature range: -40~85℃

    Relative humidity: 5%~95%(no condensation)

    Physical

    Characteristic

    Housing: IP40 protection, metal

    Installation: DIN-Rail mounting

    Weight: 387g

    Dimension (W x H x D): 35mm×110mm×95mm

    Industrial

    Standard

    IEC 61000-4-2 (ESD), Level 3

    Air discharge: ±8kV

    Contact discharge: ±6kV


    IEC 61000-4-4 (EFT), Level 3

    Power supply: common mode ±2kV, differential mode ±1kV


    IEC 61000-4-5 (Surge), Level 3

    Power supply: ±2kV

    Ethernet interface: ±1kV


    Shock: IEC 60068-2-27

    Free fall: IEC 60068-2-32

    Vibration: IEC 60068-2-6

    Certification

    CE, FCC, RoHS

    Warranty

    5 years


    Dimension
    Unit:mm


    Ordering Information


    Available ModelsGigabit Copper PortPower Supply Range
    IES205G512~48VDC
